Name: JBL PROFLORA CO2 TAIFUN INLINE 19/25
Brand: JBL
SKU: 6468900
Price: 41.69 EUR
Availability: InStock
Rating: 5 (19 reviews)

Ideal nutrition for plants
Having the right CO2 concentration in the water is hugely important for aquarium plants. Carbon dioxide is the plants’ main nutrient and it fully promotes their growth. Plants use CO2 for photosynthesis and this supplies the water with essential oxygen. They prevent algae growth, remove pollutants, provide hiding places and reduce germs.

Efficient enrichment of the aquarium water with CO2:

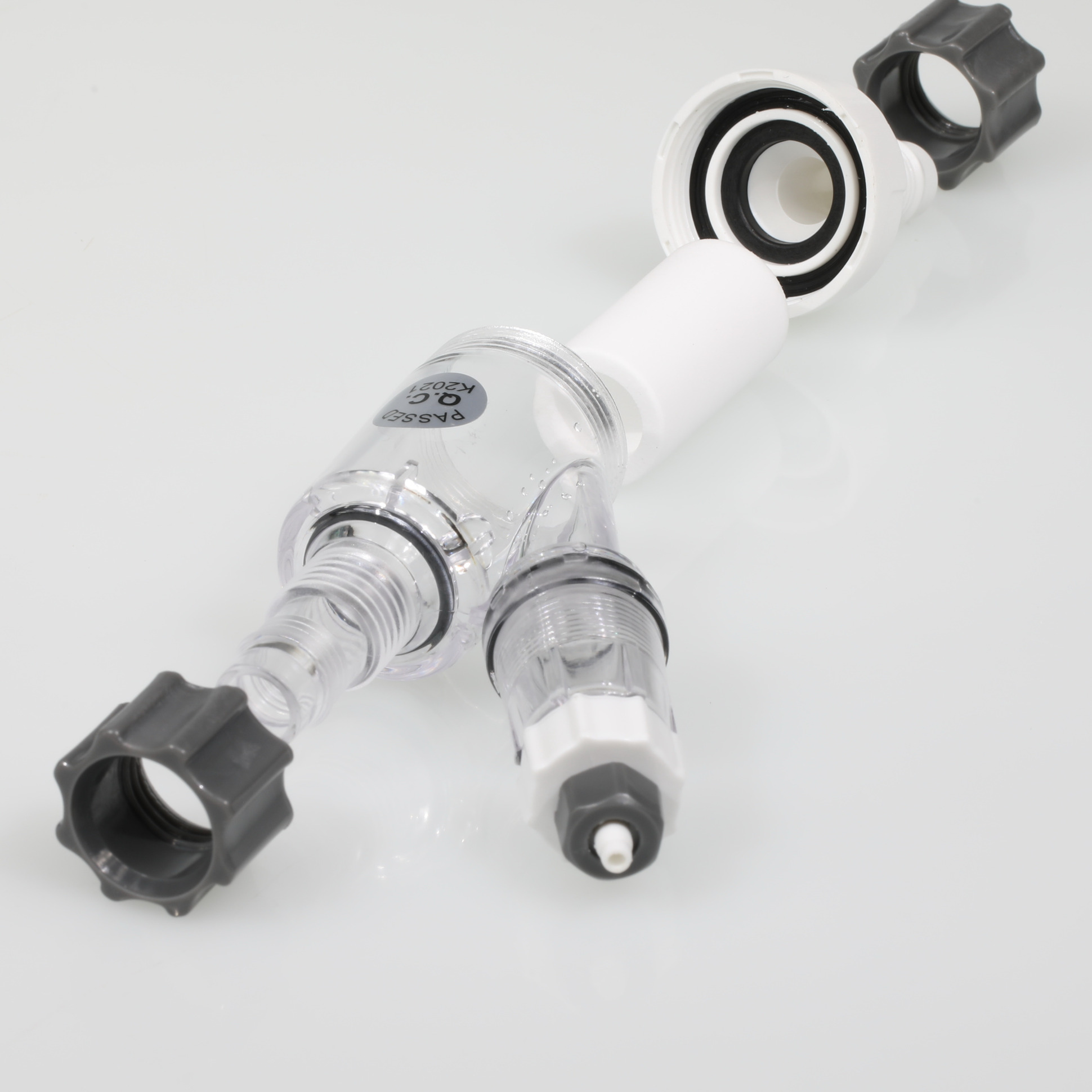

Inside the diffuser is a special diaphragm through which the CO2 diffuses into the aquarium water, which is pumped back into the aquarium by the external filter. The very small CO2 bubbles dissolve very well in the water and save about 20 % compared to other CO2 diffusers.

Easy to install

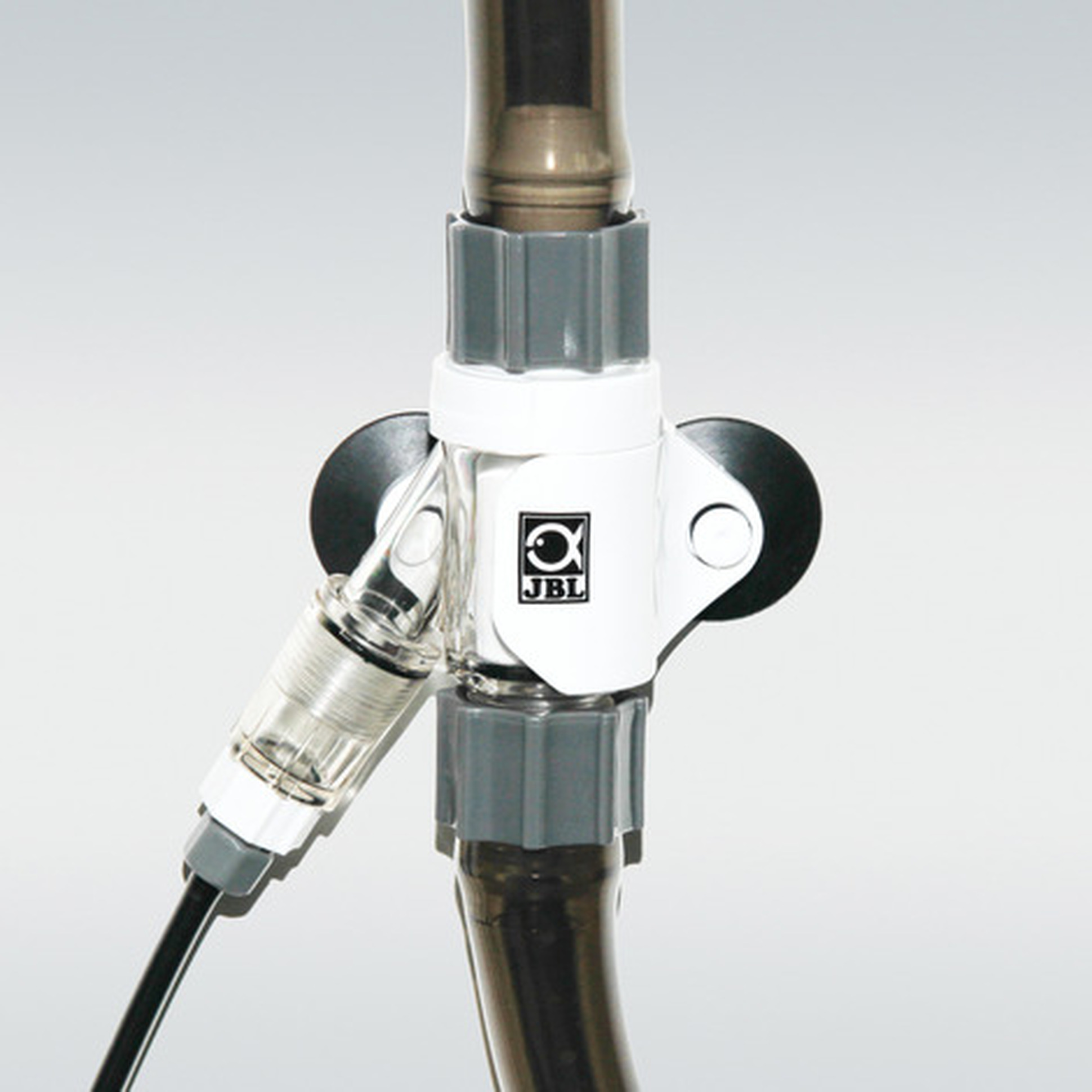

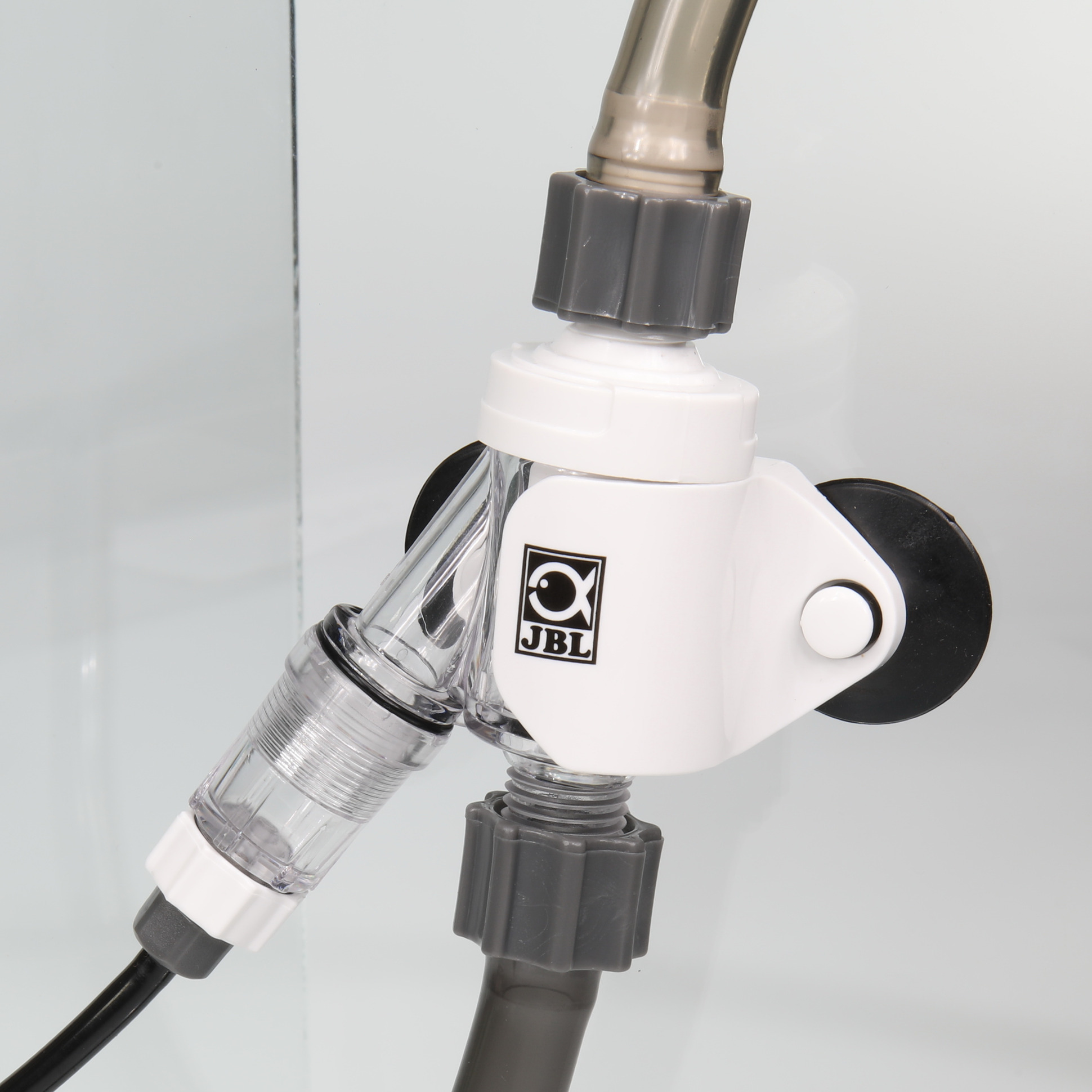

The direct diffuser needs to be integrated into the hose as close as possible to the external filter canister in order to extend the distance of the CO2 in the hose as much as possible. A vertical installation position allows the best readability of the integrated bubble counter.

What is the minimum working pressure I need to use the JBL CO2 accessories?

All check valves or backflow protectíons from JBL require a working pressure of at least 0.6 bar for the valve to open. This feature can be found in the JBL PROFLORA CO2 TAIFUN SAFESTOP, COUNTSAFE and INLINE. The JBL PROFLORA TAIFUN diffusers also all already work with this pressure. A higher working pressure is not necessary, which is why all accessories also work with the JBL PROFLORA BIO SETs (except JBL PROFLORA CO2 STARTER BIO SET). Due to installation, a slightly higher working pressure than 0.6 bar may be necessary due to long hoses and other components, which is why the presetting of 1.2 bar is sufficient in any case.

May the JBL PROFLORA CO2 products only be used for the aquarium?

Yes, the JBL PROFLORA CO2 products are designed exclusively for use in the aquarium. The gas contained promotes plant growth and works with fine precision so that even the smallest quantities can be supplied to the aquarium. Constant operation and the safety of the fish are thus guaranteed.

Should I use several check valves on my CO2 installation?

True to the motto, better safe than sorry, some aquarists install several check valves in the same circuit. For example, if you use the JBL PROFLORA direct inline diffuser or the JBL PROFLORA CO2 Count Safe bubble counter, you already have an integrated check valve. If you also use a separate check valve (JBL PROFLORA SafeStop), there may be problems with the opening of the check valves. This effect can be observed if, after the night switch-off or interruption of the supply with the controller, the addition does not restart automatically. Please note that, depending on the working pressure and the number of bubbles, a few minutes may pass between the start of the supply and the visible entry of CO2 into the aquarium.

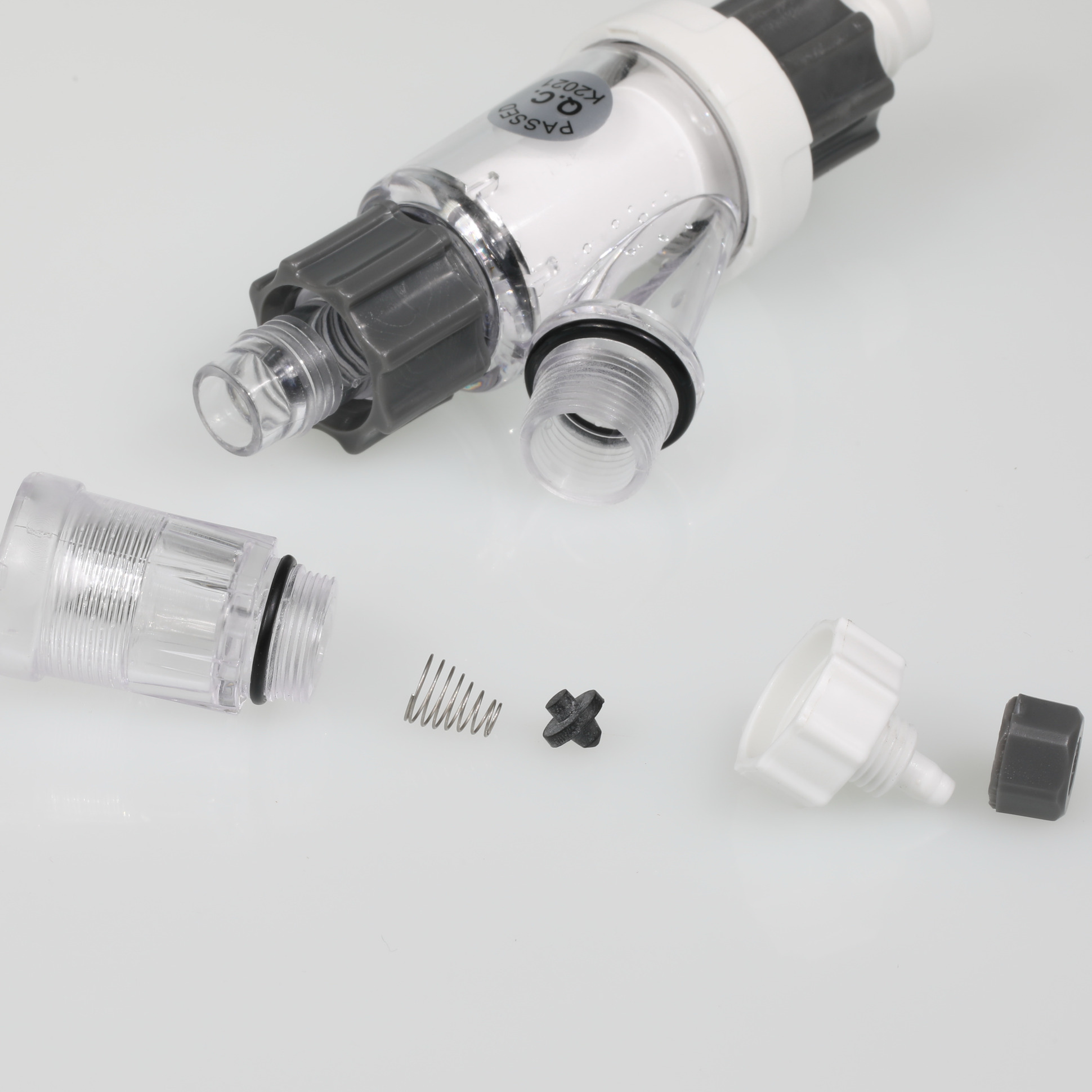

Each spring in a check valve needs a certain pressure to be opened. Several springs can therefore interfere with each other and, depending on the distance between the two check valves, reduce the pressure at the spring to such an extent that it remains closed. Therefore, please always use only one check valve for your CO2 installation.

Why do you need to soak the membrane in water for 24 hours?

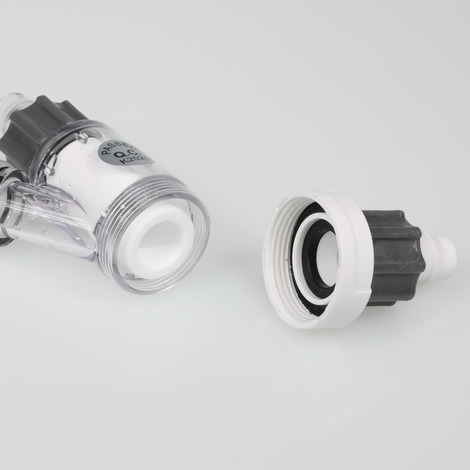

To receive a consistent bubble pattern with fine micro bubbles, the modern ceramic PE hybrid membrane needs to be soaked in water before putting it into operation. If this is not done, large bubbles will occur.

Why does the CO2 diffuser create large bubbles?

In order to enable the modern ceramic PE hybrid membrane to build consistent micro bubbles and to ensure an effective
CO2 spread in the water, it needs to be soaked in water for approx. 24 hours before being put into operation. Do not, therefore, switch on the CO2 supply after installation until the period of time mentioned has passed. Alternatively you can put the membrane into a bowl of water. Without this soaking the pores will not have enough water and will let large bubbles pass with an uneven distribution.

Show more FAQs ...

Why does my CO2-INLINE-DIFFUSOR need more bubbles per minute than my old CO2 reactor/diffuser?

The size of the bubbles is essential to providing compatibility. That’s why you cannot compare the number of bubbles in the ProFlora direct with the old method of determining the bubbles (e.g. with the ProFlora Count (safe) or other bubble counters). Depending on the method used, the bubble size can differ by up to 300 %. That’s why it’s important to use the same bubble counter when comparing both systems in order to determine the conversion factor “bubble number in the old bubble counter” to “bubble number in the ProFlora direct”. Since there is no standard CO2 bubble size, it is otherwise difficult to determine the true conversion rate.

Can the inline diffuser be used in a bio-CO2 system?

We wouldn’t recommend installing the JBL ProFlora Direct in a bio-CO2 system. The working pressure is not big enough to achieve an even addition of the CO2. Moreover, there is a danger that the pressure will not be able to escape through the integrated check valve, and this can lead to damage in the reaction vessel, if it isn’t able to withstand the pressure.

The check valve doesn’t seem to let CO2 pass through it. What can I do?

Please wait until sufficient pressure has built up in the CO2 hose. Alternatively you can sharply increase the CO2 supply for a short time.

I can hear the CO2-INLINE-DIFFUSOR whistling / chirping

In this CO2 diffuser the CO2 gets pressed through a fine diaphragm. Depending on the counter-pressure, this sometimes causes a slight chirping sound. If the sound intensifies during operation this indicates a soiling of the diaphragm or change in the operating pressure. Please clean the diaphragm and reduce the operating pressure, if required.

The bubble counter doesn’t fill with water. What can I do?

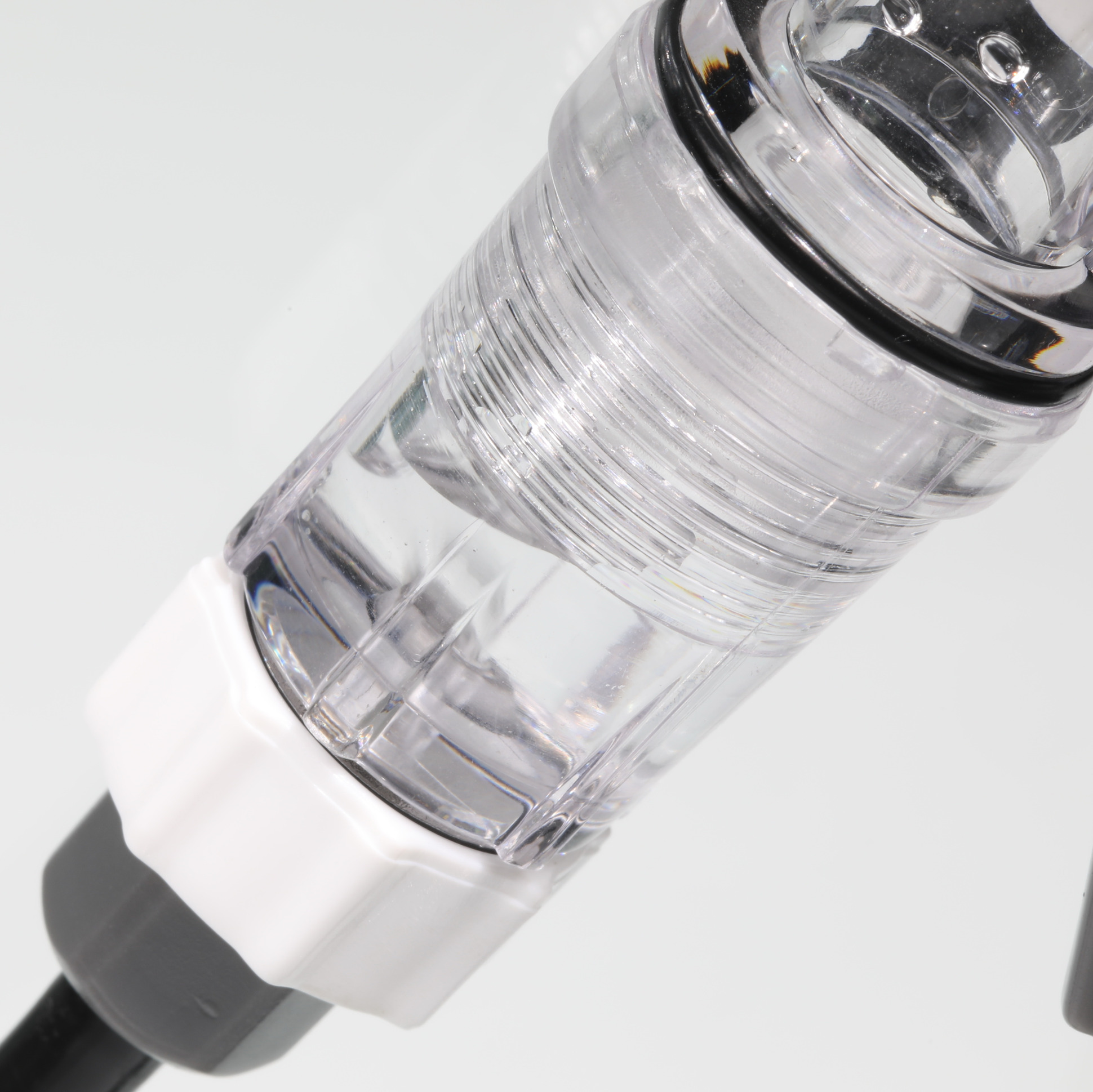

If there is no water in the bubble counter after the installation, just wait a few hours before switching on the CO2 supply. The water jet of the filter will then cause water to enter it. Alternatively while installing it, you can fill the chambers of the bubble counter with water.

Why is CO2 such a good help when combating algae?

Algae are plants, but only very simple Algae are plants, but only very simple ones. CO2 fertilisation promotes the growth of the more complex plants and algae have no chance against them!

Animal species:	Arowana, Axolotl, Barbels, Bettas, Bichirs/reedfish, Blowfish, Catfish, Cichlids (South America), Crayfish, Danions, Discus, Dwarf shrimps, Flowerhorn, Goldfish, Gouramis, Guppy, Juvenile fish, Killifish, Livebearers, Loaches, Panchaxes, Rainbowfish, Snails, Spiny eels, Tetra, Veiltails, freshwater butterflyfish
Animal size:	For all animal sizes
Animal age group:	All aquarium fish
Volume habitat:	40 - 300 L
Material:	plastic (PS)
Colour:	black / white / grey

capacity from - to:	40-300 l
Height:	140 mm
Length:	80 mm
Width:	52 mm

capacity from - to:	160-600 l
Height:	140 mm
Length:	80 mm
Width:	52 mm

capacity from - to:	200-800 l
Height:	140 mm
Length:	80 mm
Width:	52 mm

Mercury:	No
Dimmable:	No

Mercury:	No
Dimmable:	No

Mercury:	No
Dimmable:	No

Products & Shop

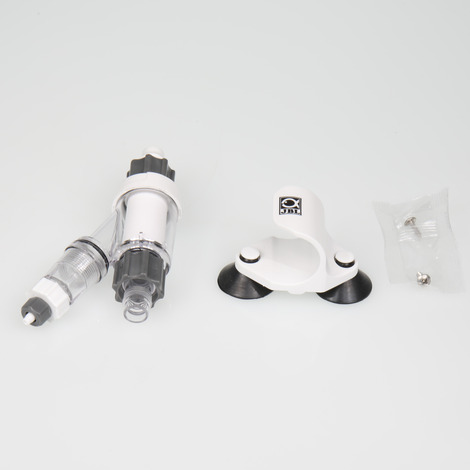

JBL PROFLORA CO2 TAIFUN INLINE High-performance CO2 diffuser for installation within filter hose of external filter

You may also be interested in

PROFLORA CO2 TAIFUN COUNT SAFE

PROFLORA CO2 TAIFUN SAFESTOP

PROFLORA CO2 TAIFUN TUBE

PROFLORA CO2 TAIFUN SPIRAL 5

PROFLORA CO2 TAIFUN SPIRAL 10

PROFLORA CO2 TAIFUN SPIRAL EXTEND

PROFLORA CO2 TAIFUN INLINE MEMBRANE

PROFLORA CO2 TAIFUN GLASS

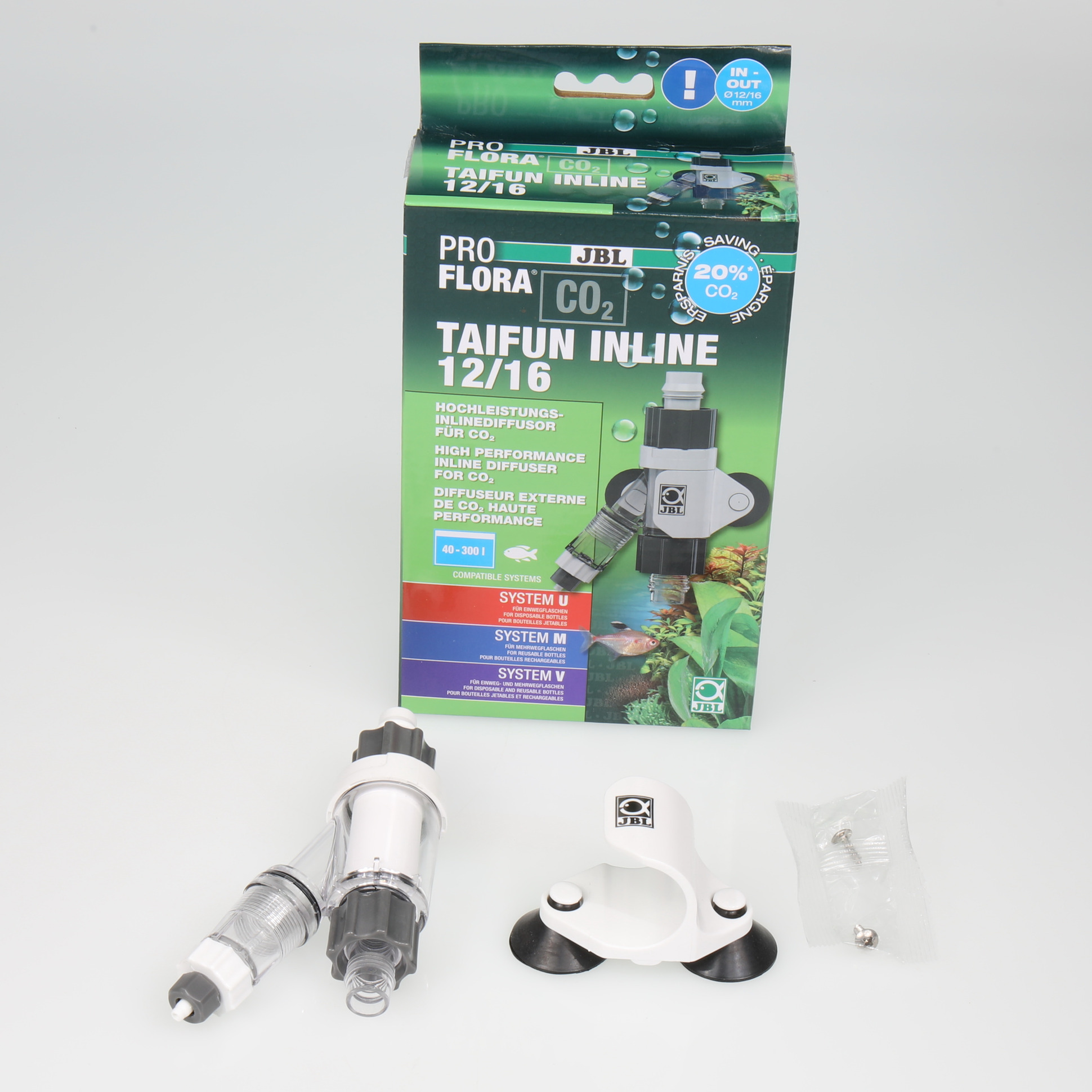

JBL PROFLORA CO2 TAIFUN INLINE 12/16

Properties

Electronic label / illuminant

Technical Data

JBL PROFLORA CO2 TAIFUN INLINE 16/22

Properties

Electronic label / illuminant

Technical Data

JBL PROFLORA CO2 TAIFUN INLINE 19/25

Properties

Electronic label / illuminant

Technical Data

Why is CO2 such a good help when combating algae?

JBL TV #34: How does CO2 get into the aquarium? Reactor, diffuser & more

JBL TV #31: BASIC. ADVANCED. PROFESSIONAL.

Plant growth

Reducing problematic water values

Deficiency symptoms

Algae control

Plant care

Daily care

CO2

Fertilising

Plant species

Installation technical items

Plants

CO2 plant fertilisation

The marine aquarium

Biotope (habitat) aquarium types

Aquascaping aquarium type JBL Dreamscape®

Jungle aquarium type JBL Rio Pantanal®

Rocky reef aquarium type JBL Malawi Rocks®

Goldfish aquarium type JBL Goldfish Paradise®

Instructions

JBL PROFLORA CO2 TAIFUN INLINE

safety instructions

safety instruction for accessories

PROFLORA CO2 TAIFUN INLINE MEMBRANE

PF CO2 INLINE bubble counter + check valve

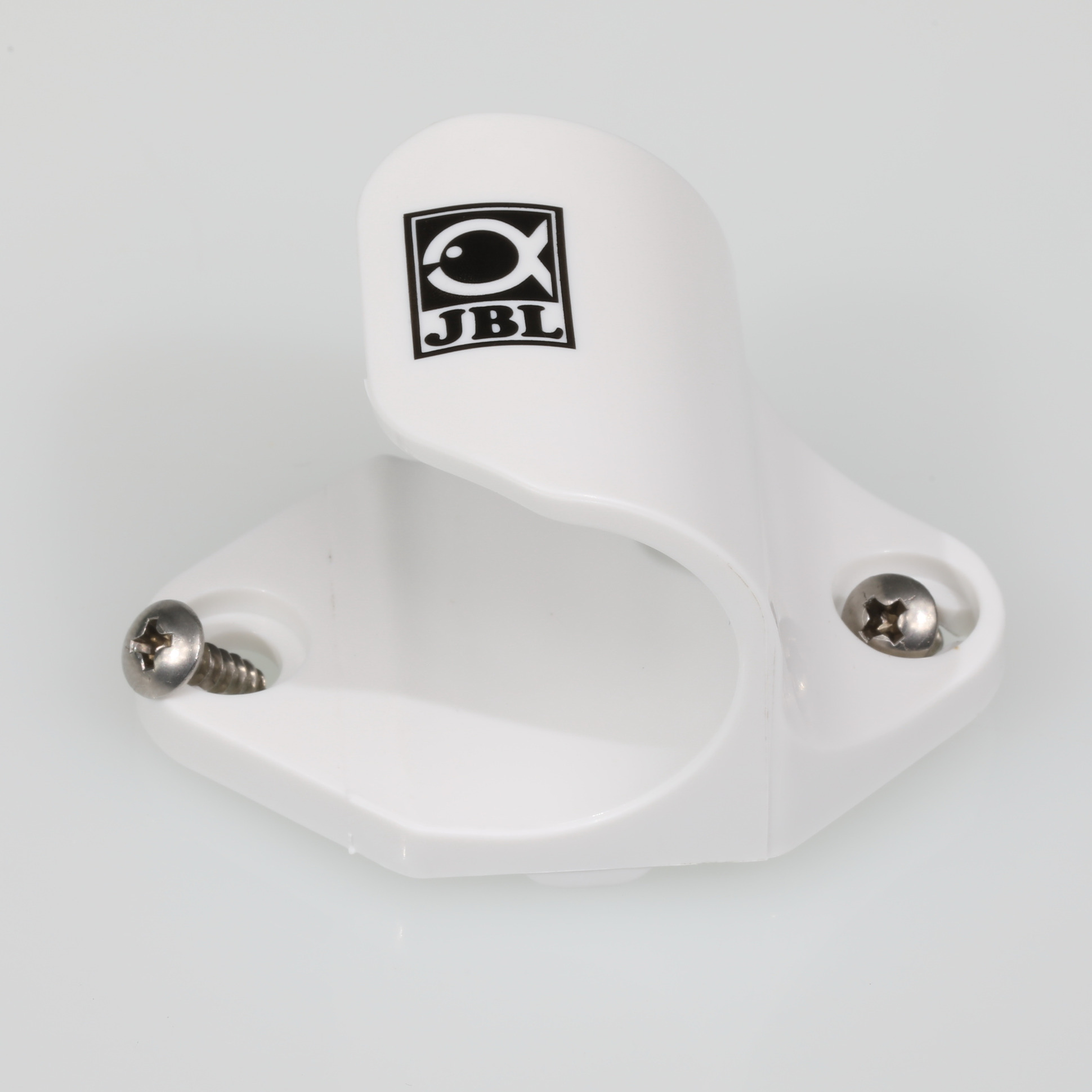

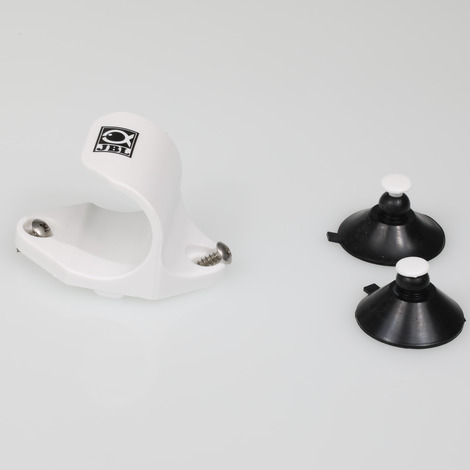

PF CO2 INLINE holder set
